Elddis Affinity 2025

Elddis Affinity 2025

2025 SOPHISTICATED, LUXURIOUS & LIGHTWEIGHT.

Affinity 520 – A luxurious couples’ retreat.

Affinity 550 – Classical and elegant.

Affinity 574 – Distinctively opulent.





Description

Affinity 520 – 2 Berth – A luxurious couples’ retreat
A fantastic luxurious retreat, for weekends or longer holidays, the 520 is designed for two people, with a spacious and airy front lounge and a beautifully appointed kitchen with sideboard, allowing the living area to seamlessly flow into the kitchen space. The rear boasts one of our most spacious bathrooms yet, with separate shower cubicle, dressing area and abundant wardrobe space. The 520 is the perfect model for those wanting ease of manoeuvrability in a mid-sized luxurious package.

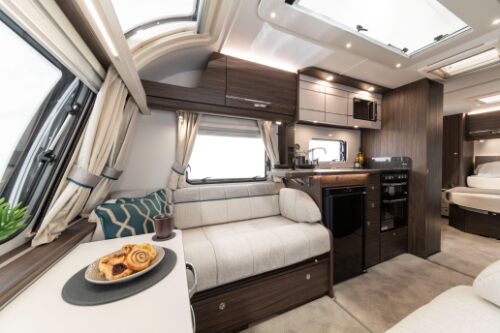

Affinity 550 – 4 Berth – Classical and elegant
The elegant 550 boasts a rear island bed layout with abundant hanging wardrobe space and cabinetry, with spacious separate washroom and shower cubicle which can be closed off from the living space to provide a real home-from-home feeling. The lavishly appointed living area and kitchen combine to provide a wonderfully classical and elegant touring space.

Affinity 574 – 4 Berth – Distinctively opulent
The twin rear beds of the 574 are ideal for those who like their own resting space. Working equally well for couples, families, or friends, and of course, being an Affinity, this layout comes in a sumptuous and luxurious package. The 574 layout allows for the mid shower cubicle and separate washroom to be used as an en-suite, for day use only, or a mixture of the two using the dividers. Altogether, a superbly distinctive and flexible layout.

Alde Central Heating System
Improved Alde 24-hr multi-programmable central and water heating system. Runs on gas, electric (up to 3.15KW) or both with new easy-to-use LCD touchscreen control with night-time display setting. Now with automotive-standard Glycol G13 Antifreeze coolant.

GRP Sunsation High Gloss White sides
New GRP Sunsation High Gloss White sides – By far the most UV-resistant material in the world with extreme gloss and colour resistance.

Layouts

Despite its light weight, the Elddis Affinity boasts an abundance of features as standard, quality craftsman-built cabinetry, and stylish detail inside and out. You can have it all!

2025 Elddis Affinity 520 (2 Berth | Single Axle)


2025 Elddis Affinity 550 (4 Berth | Single Axle)




2025 Elddis Affinity 574 (4 Berth | Single Axle)






520

  • Year: 2025
  • Model: Affinity 520
  • Number of Berths: 2
  • Wheel Rim: 5 1/2 Jx14 5×112
  • Tyre Size: 185 R14 104
  • Tyre Pressure at MTPLM in psi: Downrate 54 / Standard 56 / Uprate 63
  • Interior Length: 5000mm / 16’5″
  • Exterior Body Length: 5583mm / 18’4″
  • Shipping Length: 6697mm / 22’0″
  • Overall Width: 2230mm / 7’4″
  • Overall Height: 2674mm / 8’9″
  • Overall Height Excluding TV Aerial: 2606mm / 8’7″
  • Maximum Headroom: 1975mm / 6’6″
  • Interior Width: 2118mm / 6’11″
  • Porch Awning Height: 2475mm / 8’1″
  • Awning Sizes Ground to Ground: 9580mm / 31’5″
  • Maximum Hitch Weight: 100kgs / 1.97cwt
  • Mass in Running Order (MIRO): 1234kgs / 24.29cwt
  • Optional Equipment Payload: 0
  • Maximum User Payload: 126kgs / 2.48cwt
  • Plated M.T.P.L.M: 1360kgs / 26.77cwt
  • Maximum M.T.P.L.M: 1500kgs / 29.53cwt
  • Front Mattress Sizes: 1 x Double: 1.99m x 1.44m 6’6″ x 4’8″ or 2 x single: 1.81m x 0.67m 5’11″ x 2’2″

550

  • Year: 2025
  • Model: Affinity 550
  • Number of Berths: 4
  • Wheel Rim: 5 1/2 Jx14 5×112
  • Tyre Size: 185 R14 104
  • Tyre Pressure at MTPLM in psi: Downrate 60 / Standard 60 / Uprate 65
  • Interior Length: 5779mm / 19’0″
  • Exterior Body Length: 6355mm / 20’10″
  • Shipping Length: 7475mm / 24’6″
  • Overall Width: 2230mm / 7’4″
  • Overall Height: 2686mm / 8’10″
  • Overall Height Excluding TV Aerial: 2623mm / 8’7″
  • Maximum Headroom: 1975mm / 6’6″
  • Interior Width: 2118mm / 6’11″
  • Porch Awning Height: 2475mm / 8’1″
  • Awning Sizes Ground to Ground: 10350mm / 33’11″
  • Maximum Hitch Weight: 100kgs / 1.97cwt
  • Mass in Running Order (MIRO): 1326kgs / 26.10cwt
  • Optional Equipment Payload: 0
  • Maximum User Payload: 154kgs / 3.03cwt
  • Plated M.T.P.L.M: 1480kgs / 29.13cwt
  • Maximum M.T.P.L.M: 1550kgs / 30.51cwt
  • Front Mattress Sizes: 1 x Double: 1.99m x 1.12m 6’6″ x 3’8″
  • Side Dinette Mattress Sizes: N/A
  • Rear Mattress Sizes: Fixed Double: 1.90m x 1.34m 6’3″ x 4’5″

574

  • Year: 2025
  • Model: Affinity 574
  • Number of Berths: 4
  • Wheel Rim: 5 1/2 Jx14 5×112
  • Tyre Size: 185 R14 104
  • Tyre Pressure at MTPLM in psi: Downrate 60 / Standard 63 / Uprate 65
  • Interior Length: 5591mm / 18’4″
  • Exterior Body Length: 6155mm / 20’2″
  • Shipping Length: 7290mm / 23’11″
  • Overall Width: 2230mm / 7’4″
  • Overall Height: 2686mm / 8’10″
  • Overall Height Excluding TV Aerial: 2618mm / 8’7″
  • Maximum Headroom: 1975mm / 6’6″
  • Interior Width: 2118mm / 6’11″
  • Porch Awning Height: 2475mm / 8’1″
  • Awning Sizes Ground to Ground: 10100mm / 33’2″
  • Maximum Hitch Weight: 100kgs / 1.97cwt
  • Mass in Running Order (MIRO): 1348kgs / 26.53cwt
  • Optional Equipment Payload: 0
  • Maximum User Payload: 152kgs / 2.99cwt
  • Plated M.T.P.L.M: 1500kgs / 29.53cwt
  • Maximum M.T.P.L.M: 1550kgs / 30.51cwt
  • Front Mattress Sizes: 1 x Double: 1.99m x 1.12m 6’6″ x 3’8″
  • Side Dinette Mattress Sizes: N/A
  • Rear Mattress Sizes: 2 x Single: 1.85m x 0.77m 6’1″ x 2’4″
